With the guarantee of great accumulation of experience and abundant technology resources, JUDD researched and developed main producing equipments such as Coldforming Machine、beveling machine and so on. And the aid equipment, together with the frock mould is manufactured by well-known factories according to our technique requirements. Therefore, our level of production technology represents the most advanced technology of manufacturing pipelines within craft brothers. And we are famous for advanced equipment, variety of products and great quality as well.

The main equipments:

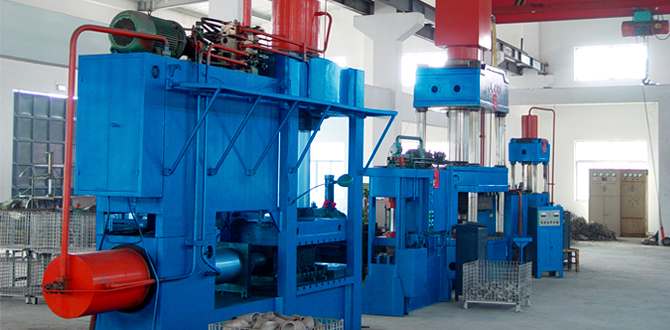

Boot press machine

3 sets
Total working press:1300tons
Process capability：
1：Reducers DN15-DN600,SCH5S-SCH160
2：Lap joint stub ends
DN150-DN600 SCH5S-SCH80S
3：Plated caps
DN150-DN600，SCH5S-SCH80S
1：The annual capacity of reducers: about 1170 tons
2：The annual capacity of lap joint pipes: about 800 tons
3：The annual capacity of caps: about 200 tons

Large solid melting pot
Fixed investment size: 18 inches-48 inches

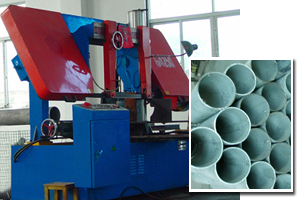

Saws cutting machine

10 sets
The max cutting diameter is 800MM
The annual capacity of manufacturing other kinds of pipe fitting materials
DN10-DN750MM ，about 8200 tons

Heat treatment furnace

1 set
Max. diameter: 1500mm
Annual treatment capacity: 5600 tons
Max. treating temperature: 1350 degree

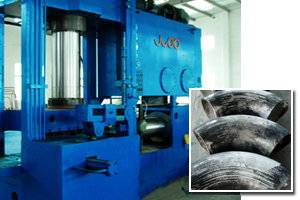

Elbow forming machine for 10-18 inch

1 set
Working press: 1500 tons
Process capacitiy：
1：SEAMLESS ELBOW 90L/R 45L/R 90S/R
DN250-DN450 SCH10S-SCH160
2：WELDED ELBOW 90L/R 45L/R 90S/R DN400-DN1100 SCH5S-SCH80
3: The annual capacity: about 4500 tons

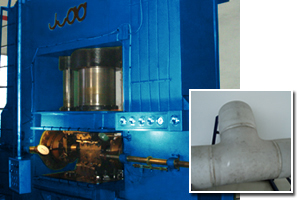

TEE forming machine for 6-14 inch

1 set
Working press: 3500 tons
Process capacity:
1：TEE DN125-DN350,SCH5S-SCH80
2：The annual capacity: about 820 tons

Elbow forming machine for 1/8-3 inch

1 set
Working press: 150 tons
Process capacity:
1：ELBOW 90--45L/R，90S/R DN10-DN80,SCH10S-SCH160
2：The annual capacity: about 230 tons

TEE forming machine for 1/2-4 inch

1 set
Working press: 1100 tons
Process capacity:
1：TEE DN15-DN100,SCH5S-SCH80
2：The annual capacity: about 200 tons

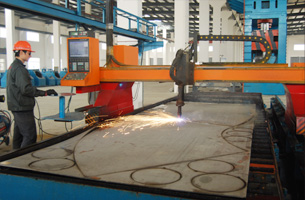

CNC Plasma Cutting Machine

1 set
Manufacturing objects: Sheet metal
Working ability:
1：Plate 2.5*8M
Thickness: 3-25MM
2：Annual output：380 ton（year)

CNC Plasma Blanking Machine - DGS -2400

1 set
Manufacturing objects: Sheet metal
Working ability:
1：Welded elbow DN250-700（10”-28”）
Thickness：3-25MM
2：Annual output：330 ton（year)

Elbow CNC Plasma Blanking Machine - DGS -4000

1 set
Manufacturing objects: Sheet metal
Working ability:
1：Welded elbow : DN600-1500 (24”-60”)
Thickness：3-25MM
2：Annual output：350 ton（year

Large CNC plasma straight seam automatic welding machine
1. Processing object: metal plate, plate system have seam different-diameter pipe, the three links
2. Processing thickness: 3 mm-20 mm
3. Dimensions: DN350-2
4. The year processing capacity: 100 tons)

Large CNC plasma curve (elbow) automatic welding machine
1. Processing object: metal plate, plate system have sew the elbow
2. Processing thickness: 3 mm-20 mm
4. Dimensions: DN350-2
5. The year processing capacity: 100 tons

Fitting beveling machine 13, the max. diameter:800mm, the annual capacity of manufacturing other kinds of butt-welding fittings, DB10-DN750mm, about 4200 tons.
Other aid equipments: polisher 4 sets, electric welding machine : 5 sets. shot blasting machine 2 sets...
